The Liquidtool Sensor 01
Automatically and regularly measuring coolant concentration and temperature.

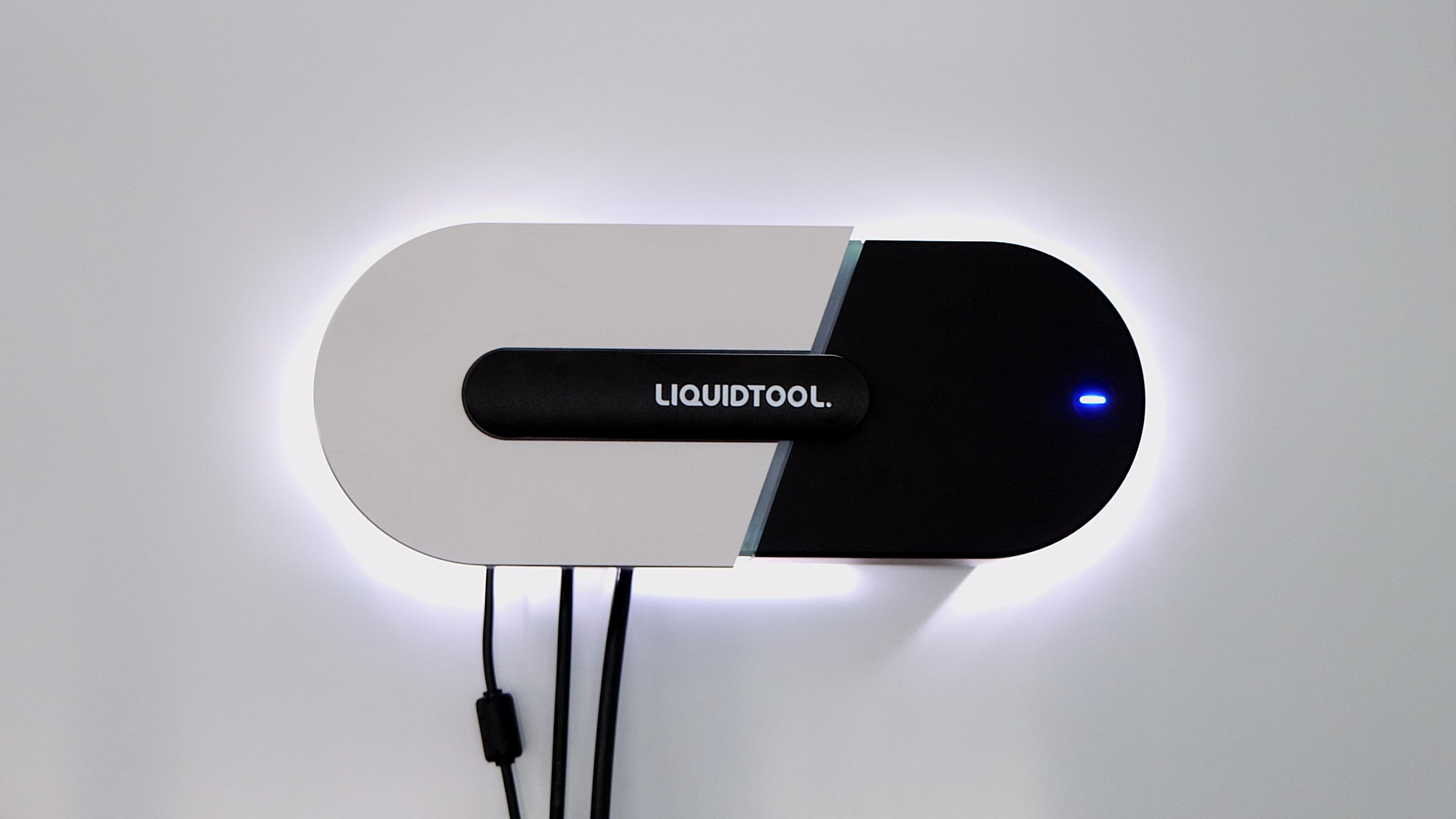

The Liquidtool Sensor 01
The Liquidtool Sensor 01 is a key product of all Liquidtool solutions. It regularly and automatically measures concentration and temperature of your metalworking fluid. The measurement data is then sent to the Liquidtool Manager, where it will be analyzed in real-time.
The Sensor, together with the Liquidtool Extender, is an important part of the AutoPilot solution. However, it is available as a separate monitoring solution called Liquidtool Instructor.
Characteristics
- Plug & Play installation
- Magnetic mount
- Low maintenance
- Self-cleaning refractometer
- Over-the-air updates
Installation
Installation is quick and easy.
Thanks to the magnets, you can put the Sensor 01 close to your coolant sump and then follow the steps to mount it properly.
All you have to provide is a working internet connection (WLAN or LAN) and a power socket. For the registration of the Sensor, a smartphone or tablet with bluetooth is necessary.
Low maintenance
Always up to date.
The Liquidtool Sensor 01 is a self-monitoring system and does not require any maintenance. If a problem occurs, the sensor automatically sends you a notification, including hints on how to solve the problem. The sensor receives updates “over-the-air.” Therefore, it is always up to date without you having to intervene.
Scope of delivery
- 1 Sensor device
- 1 NFC token
- 2 Hoses (1x 8mm intake, 1x 6mm outlet)
- 1 Outlet weight
- 1 Intake filter
- 1 Power supply
- 4 Adapter plugs
What is the NFC token?
Thanks to the included token, you can see your respective machine’s data on a smartphone in seconds. If you place the token at the machine’s front, you can access the data while passing by. You will now save yourself a trip to the coolant tank by checking the condition quickly and efficiently.
Specification
Weight
Net: 3.1 kg (6.83lbs.)
Gross: 4.5 kg (9.9lbs.)
Size (W x H x D)
317 x 130 x 84 mm
12.48 x 5.12 x 3.31 inch
Power supply
100-240V 50/60Hz
Digital Ports
RJ45, Bluetooth, USB, WLAN
Serial Ports
RS485
Tube connections
8 mm (0.31″) (Intake)
6 mm (0.25″) (Outlet)
Pump
Piston pump
volume: 400 ml/min (13.53 fl oz/min)
Filter
Particle size: 100μm (0.0039″)
Tubing
Suction lift: 150 cm (5ft.) max.
IP enclosure rating
IP44
Fixation
Magnetic
Operation conditions
5 to 40 °C (41 to 131 °F); 0 to 95 % relative Humidity
Storage temperature
-25 to 60 °C (-4 to 140 °F) (dry)
Download Data sheet
Download the full data sheet of the Liquidtool Sensor 01. Submit your contact details and an e-mail with your copy will be sent to you.
